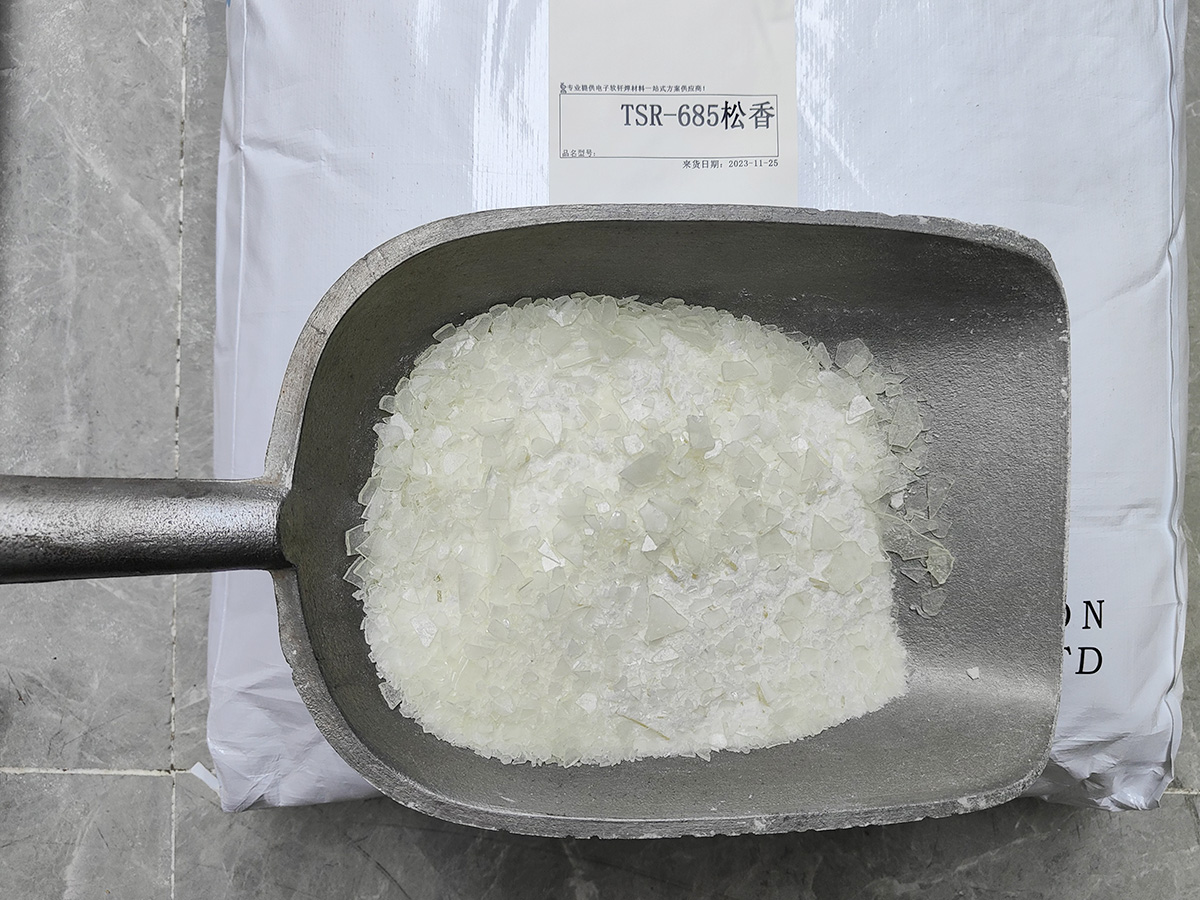

TSR685 rosin

Applied discipline: Electronic soldering materials

Overview: TSR-685 is mainly used in electronic tin solder, solder paste, and tin wire. TSR-610 is mainly used in lead-containing solder paste. It has good heat resistance, no crystallization, and good fluidity. When used with TSR-685, it has good coating properties in lead-free solder paste. It has strong fluidity and good wettability. It can support the activity of the entire soldering cycle. It is especially suitable for use in density. Large powder.

TSR-610 is also suitable for pigment synthesis. It can control the growth of pigment crystal particles, reduce the aggregation of pigment particles during drying and grinding, and increase the brightness and tinting power of pigments. The average particle size of pigments is small, and the particle distribution is narrow, which improves pigment and Compatibility, wettability and dispersion of the media used. It gives the pigment better fluidity in organic solvents and enhanced lipophilicity.

Product brand	Type	Softening point, °c(a)	Chroma(b)	Acid value (c)	Application
TSR-610	Modified Disproportionated rosin	100-110	2MAX	≥200	Solder paste, flux, adhesive, alcohol-soluble ink. Alcohol-soluble coating glue.
TSR-685	Modified Disproportionated rosin	120-130	2MAX	≥230	Solder paste, flux, adhesive, alcohol-soluble ink.

Inventory and inventory control: It is recommended to strictly control inventory at all times and pay attention to first-in, first-out. Pay attention to moisture-proofing. The storage and transportation period is half a year. Please control the inventory. If it is used beyond the storage period, please test it first and then use it.

Note: This information is for reference only and does not constitute a warranty statement that the company assumes legal liability. The company will make adjustments to relevant content without prior notice.
